Our Products

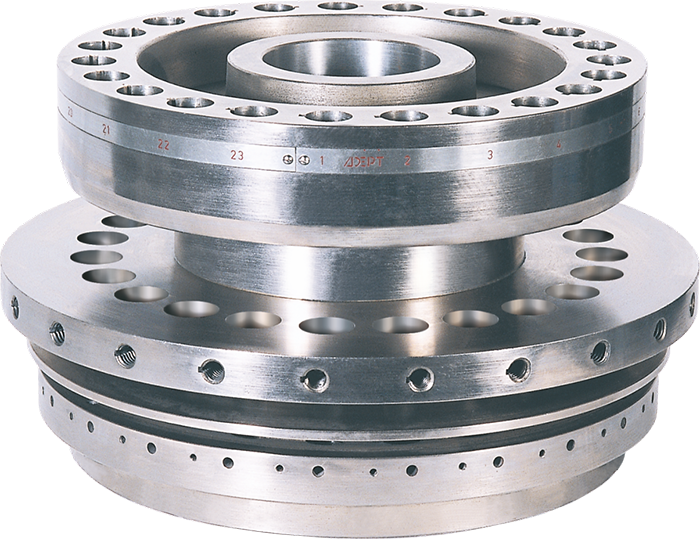

Higher Station Turret
We offer higher station turrets to help increase the production of your existing tablet press. All you need to do is change the turret, which usually takes less than five hours. The cam-plate and cam-tracks do not have to be changed if the tooling type remains same. We provide higher station turrets for Manesty, Cadmach and Stokes machines.
- All contact parts are S.S. 316 as per cGMP Standard.
- Compact design.
- Interchangeable product bowl facility (optional 5Ltr. & 3Ltr.)
- High Shear Mixing, Homogenizing, Humidifying and Granulating process.
- Special design mixer & chopper.
- Pneumatically operated discharging system.
- Short mixing & granulation time.
- Easy to install, operate, clean, convenient & user-friendly.
- Easy moveability with the help of castors.
- Total drive transmission system enclosed.
- Air pressure switch installed to ensure pressure is within limits.
- Safety switch fitted at Top Lid.
- Emergency Push-button.
Technical Details
| Model | SRMG-5 kg (10 Ltr.) |
|---|---|
|
Container Gross Volume |
Container Gross Volume |
|
Container working Volume |
3-5 kg |
|
Main Mixer Motor |
1 hp / 0.75 kW |
|
Main Mixer Motor RPM |
15 to 150 Variable |
|
Chopper Motor |
½ hp / 0.37 kW |
|
Chopper Motor RPM |
700 to 3000 |
|
Surface Finish |
Product contact part, 240 grit (0.5 u, 25 Ra) – Mirror finish Non – contact part,180 grit (0.64 u, 25 Ra) – Matt finish |
|
Gross Weight |
240 kg |
For Single Rotary “D” Tooling 16 Station Tableting Machines
| No of Station | Max Tablet Size | Die O.D. | Tooling | Production Increase | |||
|---|---|---|---|---|---|---|---|
| Round | Caplet | Punch | Die | ||||
| Existing | 16 | 25 | 25 | 38.10 | D | D | |
| Proposed | 20 | 25 | 25 | 38.10 | D | D | 25% |
| 23 | 19 | 21 | 30.16 | D | D | 43% | |
| 26 | 19 | NA | 30.16 | D | D | 62% | |
| 32 | 13 | NA | 24.00 | B | BB | 100% | |
For Double Rotary “B” Tooling 27 Station Tableting Machines
| No of Station | Max Tablet Size | Die O.D. | Tooling | Production Increase | |||
|---|---|---|---|---|---|---|---|
| Round | Caplet | Punch | Die | ||||
| Existing | 27 | 18.5 | 19 | 30.16 | B | D | |
| Proposed | 23* | 25.0 | 25 | 38.10 | D | D | -15% |
| 25* | 25.0 | 25 | 38.10 | D | D | -8% | |
| 27 | 19 | 21 | 30.16 | D | B | 0% | |
| 33 | 18.5 | 19 | 30.16 | B | B | 22% | |
| 35 | 18.5 | 19 | 30.16 | B | B | 29% | |
| 41 | 13.0 | OPT | 24.00 | B | BB | 51% | |
| 45 | 13.0 | OPT | 24.00 | B | BB | 66% | |
| Electric Supply | 220 / 415, 3 pHs, 50/60 Hz. |
|---|
