Our Products

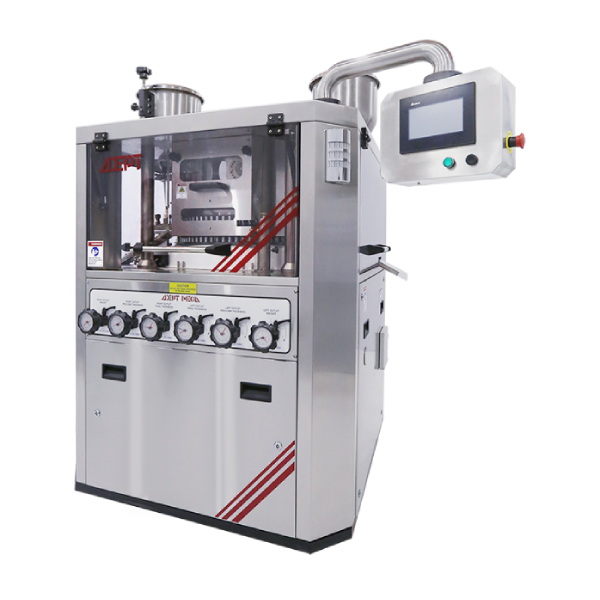

Adept Mega Press
Salient Features
Mega Press at a glance
- The mega press has center drive, with no gear on the turret.
- The machine is designed for 10 tons pre-compression pressure.
- All eight compression rollers are identical and interchangeable.
- The rollers do not require continuous lubrication.
- Front control for all external control mechanisms.
- Multi chamber food grade gravity feeder.
- Upper punches completely covered to avoid powder settlement.
- Common hopper for rotary and gravity feeder.
- Bottom driven rotary feeder.
- Control knobs fitted with Seiko dials for fine control.
- Separate control panel, not attached to the press.
- PLC based control.
- Optional – Bi layer tablets.
- All contact parts are S.S. 316 as per cGMP Standard.
- Compact design.
- Interchangeable product bowl facility (optional 5Ltr. & 3Ltr.)
- High Shear Mixing, Homogenizing, Humidifying and Granulating process.
- Special design mixer & chopper.
- Pneumatically operated discharging system.
- Short mixing & granulation time.
- Easy to install, operate, clean, convenient & user-friendly.
- Easy moveability with the help of castors.
- Total drive transmission system enclosed.
- Air pressure switch installed to ensure pressure is within limits.
- Safety switch fitted at Top Lid.
- Emergency Push-button.
Technical Specifications
| Model | SRMG-5 kg (10 Ltr.) |
|---|---|
|
Container Gross Volume |
Container Gross Volume |
|
Container working Volume |
3-5 kg |
|
Main Mixer Motor |
1 hp / 0.75 kW |
|
Main Mixer Motor RPM |
15 to 150 Variable |
|
Chopper Motor |
½ hp / 0.37 kW |
|
Chopper Motor RPM |
700 to 3000 |
|
Surface Finish |
Product contact part, 240 grit (0.5 u, 25 Ra) – Mirror finish Non – contact part,180 grit (0.64 u, 25 Ra) – Matt finish |
|
Gross Weight |
240 kg |
| Model | Stations | Round Tablet (Max Dia.) |
Caplet (Max Length) |
Max Pressure | Punch Type | Die Type | Tablet Output (Per Hour) |
|---|---|---|---|---|---|---|---|
| 40 rpm | |||||||
| AM D-D-45 | 45 | 25 | 25 | 10 | D | D | 216,000 |
| AM B-B-61 | 61 | 18.5 | 19 | 6.5 | B | B | 292,000 |
| AM B-BB-75 | 75 | 13 | 16 | 6.5 | B | BB | 360,000 |
| Electric Supply | 220 / 415, 3 pHs, 50/60 Hz. |
|---|
